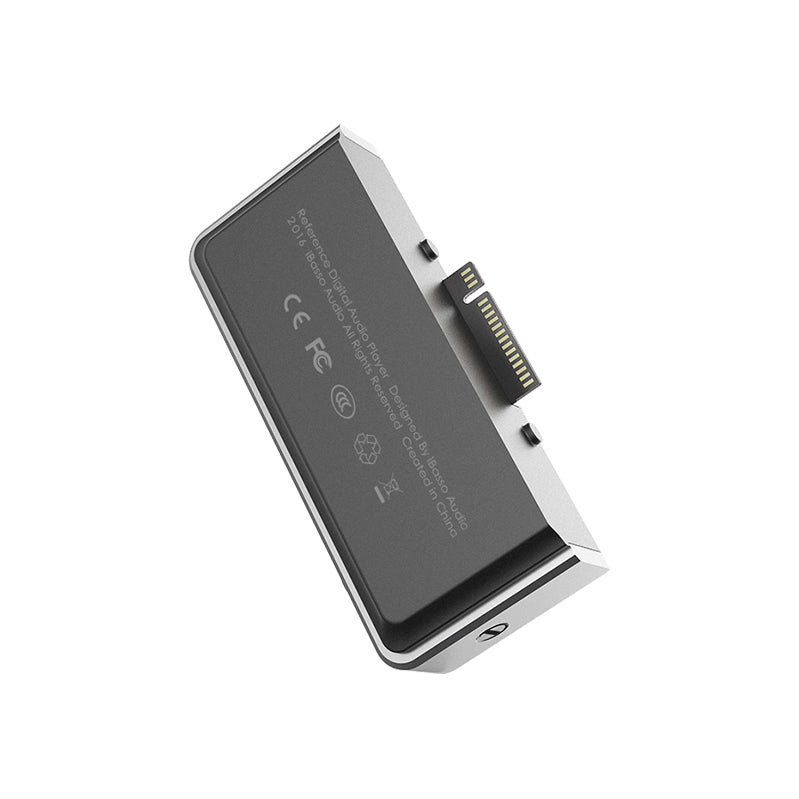

AMP5 3.5mm High Voltage Swing Amplifier Card

Features:

• +/-8V high voltage swing, this significantly improves dynamics and headroom, resulting in a more powerful sound.
• Topology utilizing voltage and current feedback, with the positive benefits of both types of feedback.
• Optimized buffer architecture, results in a lower current consumption and higher play time, but still able to output a high current into the load.
• Topology utilizing an amplification circuit and component layout resulting in a clean and very fast transient response.

The AMP5 offers the single ended user a high current and voltage amp for demanding headphones. It is also very quiet and works well with IEMs. With an extremely low background noise, music is all the more layered and transparent. AMP5 handles the dynamics of the music and delivers excellent headroom giving the quality of sound that so many hope for.

Specifications:

Average Play Time: 9-10 hours (The play time varies with different sample/bit rates, and headphone/IEM loads)

Phone Out:

• Output Voltage: 3.2Vrms
• Frequency Response: 15Hz-45KHz -0.3dB
• S/N: 121dB THD+N: 0.00025%, -112dB
• DNR: 120dB
• Crosstalk: -107dB

Line Out:

• Output Voltage: 3Vrms
• Frequency Response: 15Hz-45KHz -0.3dB
• S/N: 120dB THD+N: 0.00023%, -113dB
• DNR: 120dB
• Crosstalk: -107dB
